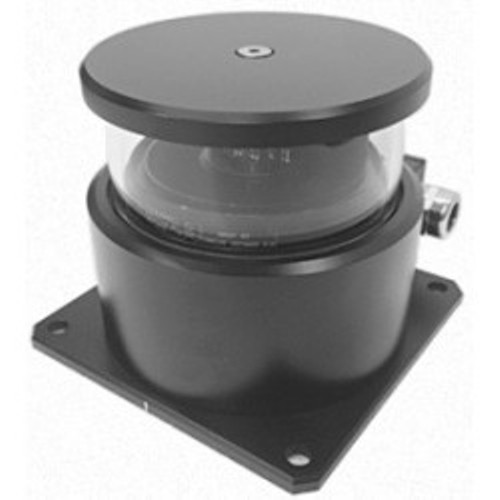

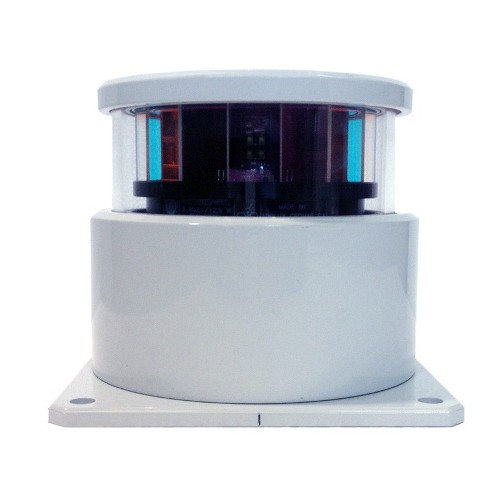

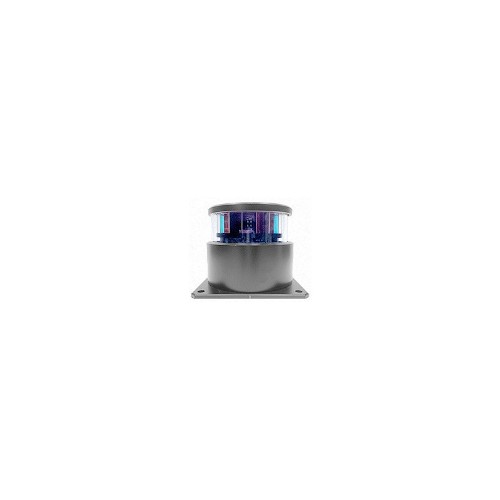

Oceanic Led Navigation Light
Oceanic Led
New
This Oceanic Led Lights have been developed for all sea going vessels with a lenght of 20 meters or more According to International Regulations for Preventing Collisions at Sea 1972 (72 COLREGS – IMO72), EN-ISO 14744 and EN 60945 (2002).
Fully resistant to sea environment, Non magnetic and Integrated terminal box in every light.
Optionals
Friendly Light for NVG (Night Vision Goggles)
Delivery of custom made lights upon request
Heating system
DNV-GL | MED Certificate
| Anchor | ||||||||
| 360o | ||||||||
| 3nm | ||||||||
| White |
Application
For all sea going vessels with a lenght of 20 meters or more According to International Regulations for Preventing Collisions at Sea 1972 (72 COLREGS – IMO72).

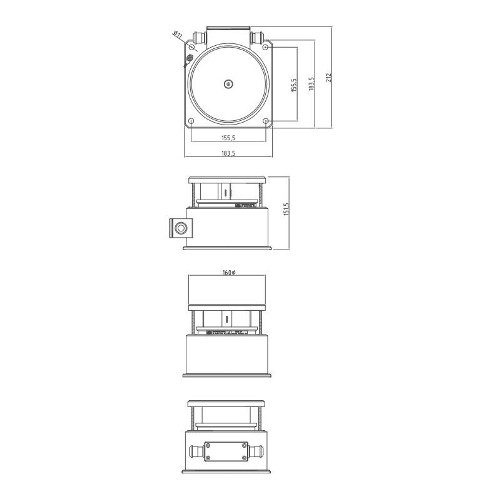

| Height | 168 mm |
| Weight | 4 kg |
| Width | 155.50 mm |
| Housing | Black anodized seawater resistant aluminum |
| Window material | Borosilicate glass |
| Operational temperature | From -25° C to +55° C |
| Protection | IP 68 |
| Lifetime | Approx. 50.000 hours for main plus 50.000 hours for spare light (main and spare light combined in the same module) |
| Power Supply | 220V / 115V / 24V |
| Power consumption | 3-15W |
| Mounting and cable connection | Two cable glands: Optional PG13,5, PG16, PG21 Four mounting holes ø11 |
| Vessels Lenght | 20 meters to 50 meters or more than 50 meters in length |
| Purpose | Civil operations |
| Lamp technology | LED |
