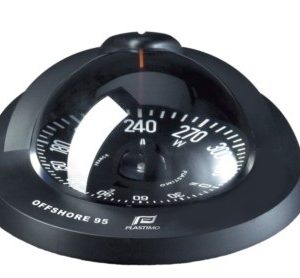

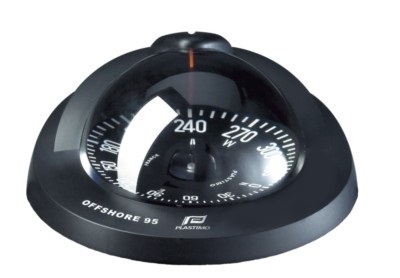

OFFSHORE 95 COMPASS
Interchangeable with OFFSHORE 90.
Powerboats 6 to 10 m (19 to 33 ft).
Installation
• Flushmount on horizontal dashboard : compact design, interchangeable with Offshore 90 and most compasses of equivalent size.
Card
Outstanding legibility under all weather and light conditions for optimum comfort and accurate readings.
• Perfect stability of conical or flat card, 81 mm apparent diameter.
• Graduation every 5°.
Materials
• All parts fully UV-ray treated.
• Scratch resistant dome.
| Boat size | Powerboats of 6 to 10 m (19-33 ft). |
| Compass card | Flat card graduated every 5°, apparent Ø 81 mm. Heading numerals every 30° |
| Mounting | Flushmount, on horizontal surface or dashboard. |
| Resistance to vibrations and hull pounding | Magnetic cell equipped with the unique “Vibration Absorber” system. |
| Lubber line | 1 lubber line, red for instant recognition. |
| Compensation | Supplied as standard |
| Lighting | 12-24 V LED, included. |
| Supplied with | Clip-plate, screws, drilling template. |
| Approval/homologation | ISO 613 compliant |
Lighting : LED light spreads the illumination evenly and prevents eye strain and fatigue at night.Access to compensation or lighting : easy, with unique flange-clip system.
Compensation can be adjusted from the outside, with no need to open the compass on the bracket version.
Watertight construction :• One-piece moulded flange and bowl.
• Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.
