460.00€ excl. VAT and shipping
| Order code | 3070205000 |
| Brand code / Origin | 3070205000, 3070203000 / Germany |
| Impa / Issa | Un coded / 4901018 |
| Degrees / Visibility | 360° / 3 nautical miles |
| Lamp holder | P28s |
| Voltage / Watt | 24VDC/40W, 115VAC/60W, 120VAC/60W, 230VAC/65W.
(inform us with each order) |
| Protection | IP56 |
| Weight | 2.7 kg |

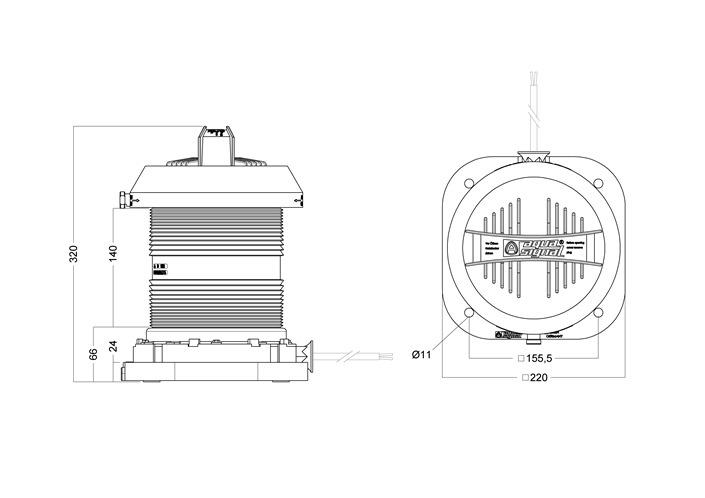

| Dimensions LxWxH | 220 x 220 x 320 mm |
| Application | For vessels 20-50m and over 50 meters in length. |
The Series 70 Navigation lights are applicable for all vessels ≥ 20 m in length. The Navigation lights fulfil all requirements of International Regulations for Preventing Collisions at Sea 1972 (COLREG) are published by the International Maritime Organization (IMO) and local rules.
| Barcode | 4036538138430 |
| Barcode | 4036538138461 |
| Users Guide | N.U.C / R.A.M, Not Under Command Red |
|---|---|
| Vessel Length (Impa & Issa ) | >50 meters |
| Light Color ( Impa & Issa ) | Red |
| Brand Name ( Impa & Issa ) | Aqua Signal |
