208.00€ excl. VAT and shipping
| Order code | 808018 |

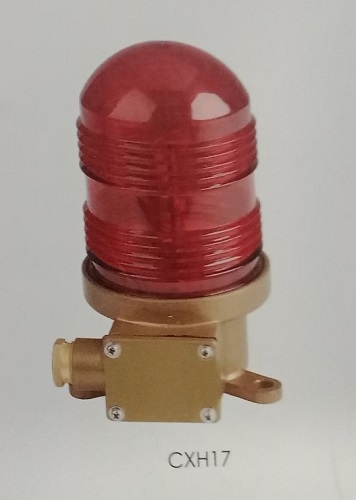

| Brand code | CXH17 RED |
| Impa | |
| Degrees / Visibility | 360° / 3 nautical miles |
| Lamp | Incadescend B22D |
| Voltage | 24 or 110 or 220V 40 to 85W |
| Protection | IP56 |
| Operating Temperature | – – – |
| Weight | 1,522 kg |

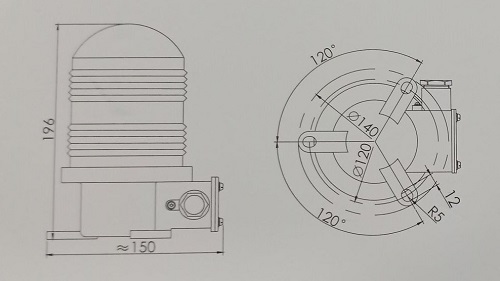

| Dimensions LxWxH | 25 x 25 x 20 cm |
| Application | For Ships >20m in Length |
| Approval | None |
| Origin | China |
For Ships over 20m in Length
1.Protection Class: IP56
3.Color:Red
4.Voltage: 24 or 110 or 220V
Power: 65W to 85W
Lamp Holder: B22D
Packing Dimensions for the transport 25x25x20cm 1,522 kg.
| Light Color ( Impa & Issa ) | Red |
|---|---|
| Vessel Length (Impa & Issa ) | >20m, >50 meters, <50m, 20-50 m. |
| Users Guide | Suez, Suez Signall |
